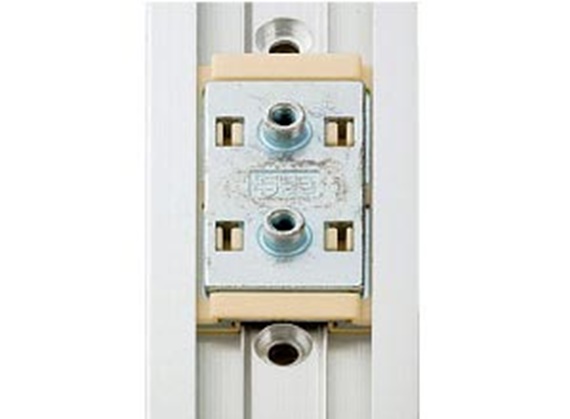

drylin® N - Low profile linear guide system NK-02-40

Version 02 with threaded hole:

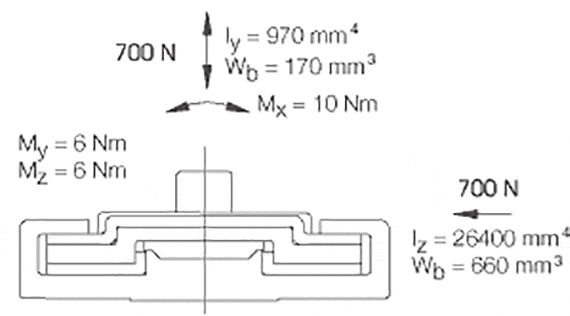

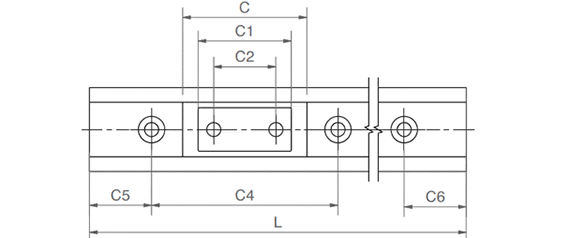

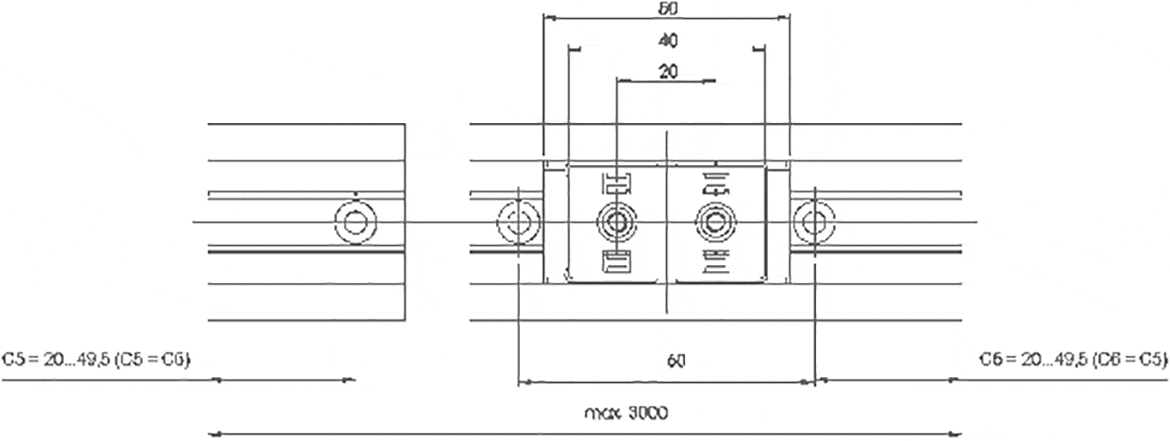

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-40	3000	40	60	0	20	20/49,5	8.7	1.3	M4	26400	970	450	71.42 BGN
NS-01-40-UNGEBOHRT	3000	40	0	0	0		8.7	1.3		26400	970	450	63.93 BGN
NS-01-40-AR	3000	40	60	0	20	20/49,5	8.7	1.3	M4	26400	970	450	82.13 BGN

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

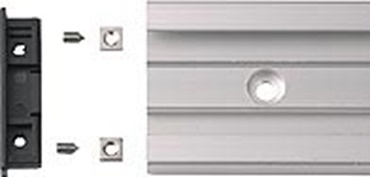

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 02 with threaded hole:

Order no.	Designation	Weight of carriage
		[g]
NW-02-40	Carriage clipped on, fixed bearing	30	14.68 BGN
NW-02-40-LLY	Carriage clipped on, floating bearing y-direction	30	14.66 BGN
NW-02-40-LLZ	Carriage clipped on, floating bearing z-direction	30	14.66 BGN
NW-02-40-LLYZ	Carriage clipped on, floating bearing y and z-direction	30	14.66 BGN

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

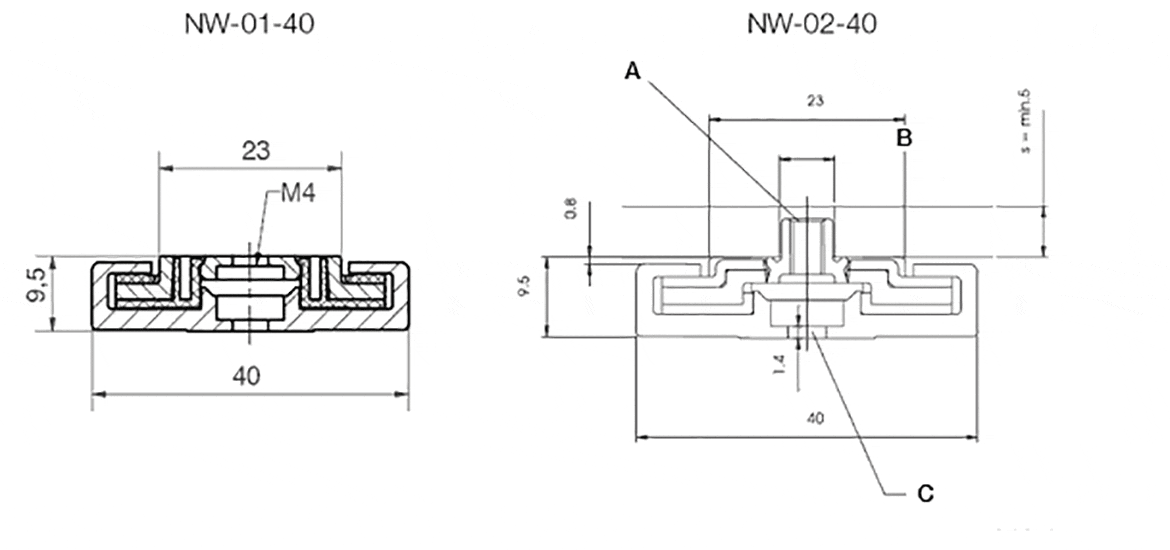

Version 02: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-02-40	9.5	23	50	40	20	0	0	M4	5	6.5	30
NW-02-40-LLY	9.5	23	50	40	20	0	0	M4	5	6.5	30
NW-02-40-LLZ	9.5	23	50	40	20	0	0	M4	5	6.5	30
NW-02-40-LLYZ	9.5	23	50	40	20	0	0	M4	5	6.5	30

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 12 with threaded hole:

Order no.	Designation	Weight of carriage
		[g]
NW-12-40	Moulded carriage	30	14.68 BGN
NW-12-40-LLY	Moulded carriage, floating bearing y-direction	30	14.66 BGN
NW-12-40-LLZ	Moulded carriage, floating bearing z-direction	30	14.66 BGN
NW-12-40-LLYZ	Moulded carriage, floating bearing y und z-direction	30	14.68 BGN
NW-12-27	Moulded carriage	12.5	8.92 BGN
NW-12-27-80	Carriage	25	17.08 BGN

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 12: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-12-40	9.5	23	52	40	20	0	0	M4	5	6.5	30
NW-12-40-LLY	9.5	23	52	40	20	0	0	M4	5	6.5	30
NW-12-40-LLZ	9.5	23	52	40	20	0	0	M4	5	6.5	30
NW-12-40-LLYZ	9.5	23	52	40	20	0	0	M4	5	6.5	30
NW-12-27	9.5	14	34	30	20	0	0	M4	5	6.5	12.5
NW-12-27-80	0	14	80	76	60	0	1.5	M4	5	6.5	25

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found in the drawings and tables above, as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

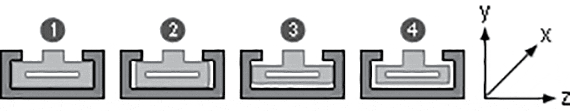

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
